Pairing TeleHealth Sensors

Updated

Select Smart Home Sensor

Click on the sensor to go to the paring instructions:


TeleHealth MTN Sensor

TeleHealth DRW Sensor

TeleHealth Chair Occupancy Sensor


TeleHealth Toilet Flush Sensor



TeleHealth Adaptive Bed Sensor

Temperature, Humidity & Motion Sensor


  • Remove the sensor from its box.

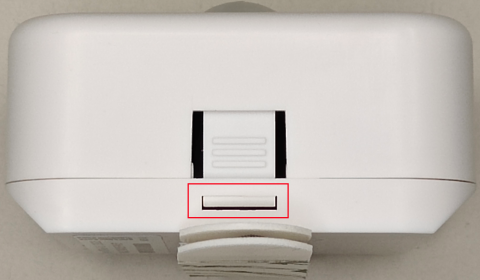

  • Insert a small flat blade screwdriver gently into the slot highlighted in red in the image below. The back of the sensor should pop off.
  • Pull the plastic tab from the sensor. Ensure that the battery does not pop out of the battery holder. If it does, push the battery back into the holder.
  • Put the back cover of the sensor back on.

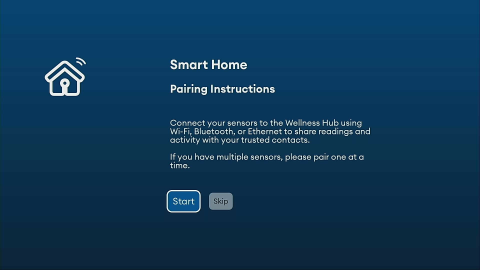

  • Click on Start on the Wellness Hub.

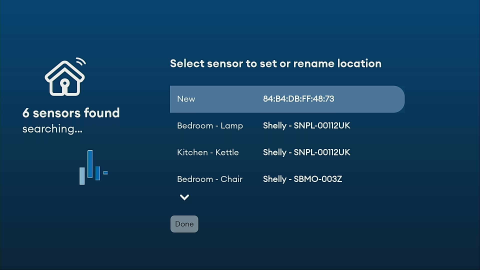

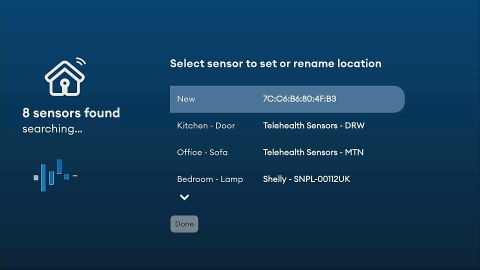

  • The sensor should appear in the list of smart home devices in the Wellness Hub UI.


  • Select the sensor that you want to pair and configure.

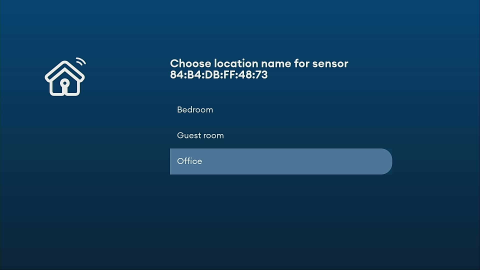

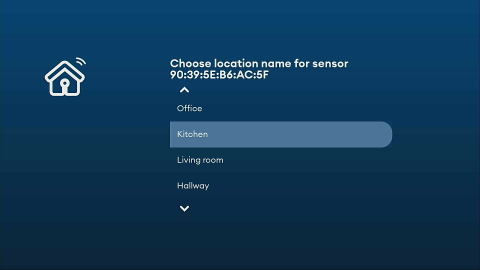

  • Select the location where the sensor will be placed.

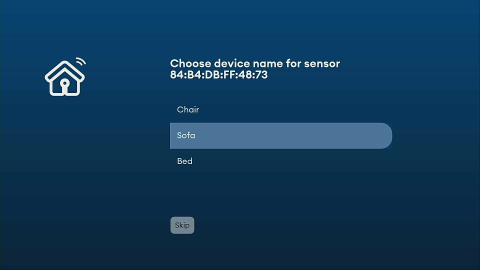

  • Select the device name for the sensor.


  • The sensor location and device name will be displayed. The sensor has been paired to the Wellness Hub.


  • You can add another smart home sensor now or click on Done to go back to the Settings screen.

Return to Pairing Smart Some Sensors article.

Back to top

Contact Sensor


  • Remove the sensor from its box.
  • Click on Start on the Wellness Hub.


  • Pull the plastic tab from the sensor.

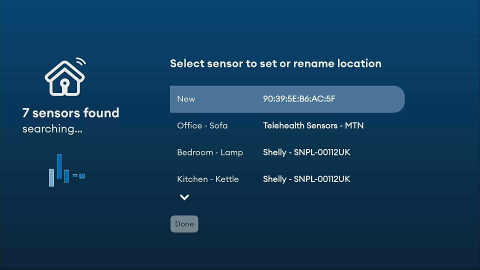

  • The sensor should appear in the list of smart home devices in the Wellness Hub UI.


  • Select the sensor that you want to pair and configure.
  • Select the location where the sensor will be placed.

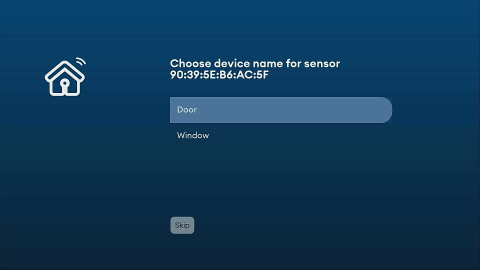

  • Select the device name for the sensor.


  • The sensor location and device name will be displayed. The sensor has been paired to the Wellness Hub.


  • You can add another smart home sensor now or click on Done to go back to the Settings screen.

Return to Pairing Smart Some Sensors article.

Back to top

Toilet Flush Sensor


  • Remove the sensor from its box.
  • Click on Start on the Wellness Hub.


  • Pull the plastic tab from the sensor.

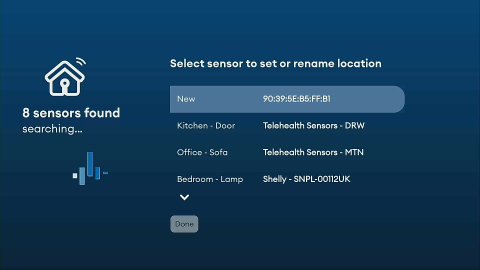

  • The sensor should appear in the list of smart home devices in the Wellness Hub UI.


  • Select the sensor that you want to pair and configure.
  • Select the location where the sensor will be placed.


  • Select the device name for the sensor.

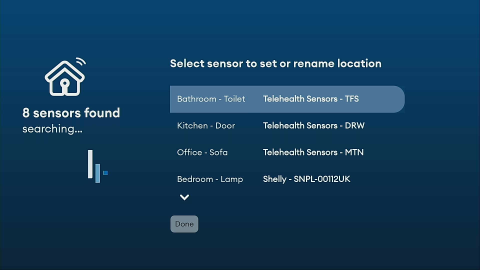

  • The sensor location and device name will be displayed. The sensor has been paired to the Wellness Hub.


  • You can add another smart home sensor now or click on Done to go back to the Settings screen.

Return to Pairing Smart Some Sensors article.

Back to top

Thin Chair Occupancy Sensor


  • Remove the sensor from its box.

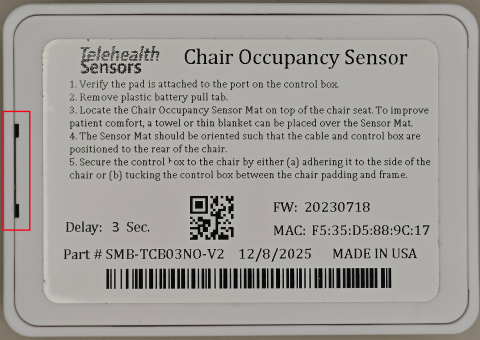

  • Insert a small flat blade screwdriver gently into the slot highlighted in red in the image below. Lever the back of the sensor off.
  • Pull the plastic tab from the sensor. Ensure that the battery does not pop out of the battery holder. If it does, push the battery back into the holder.
  • Put the back cover of the sensor back on.


  • Click on Start on the Wellness Hub.

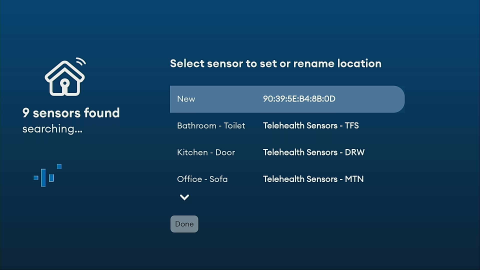

  • The sensor should appear in the list of smart home devices in the Wellness Hub UI.


  • Select the sensor that you want to pair and configure.

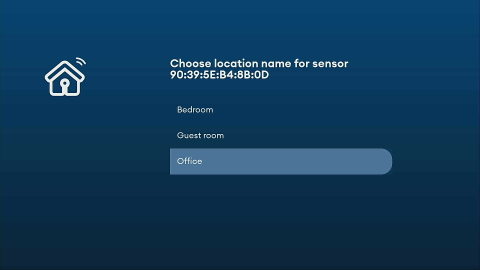

  • Select the location where the sensor will be placed.


  • Select the device name for the sensor.

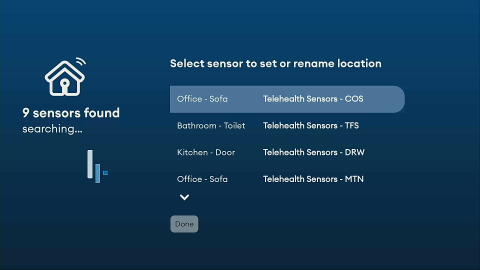

  • The sensor location and device name will be displayed. The sensor has been paired to the Wellness Hub.


  • You can add another smart home sensor now or click on Done to go back to the Settings screen.

Return to Pairing Smart Some Sensors article.

Back to top

Adaptive Bed Sensor


  • Remove the sensor from its box.

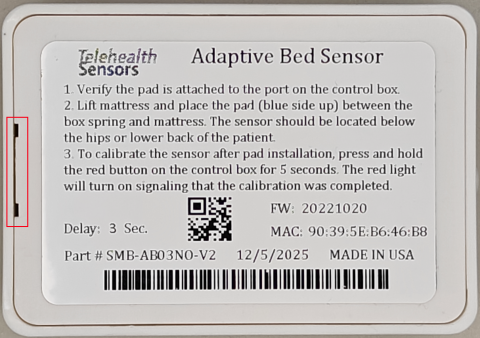

  • Insert a small flat blade screwdriver gently into the slot highlighted in red in the image below. Lever the back of the sensor off.
  • Pull the plastic tab from the sensor. Ensure that the battery does not pop out of the battery holder. If it does, push the battery back into the holder.
  • Put the back cover of the sensor back on.


  • Click on Start on the Wellness Hub.

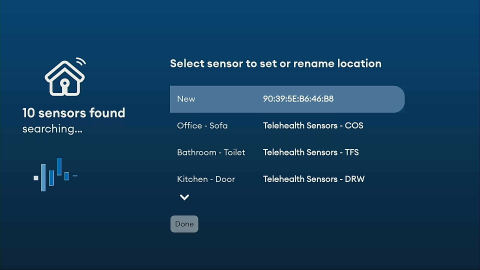

  • The sensor should appear in the list of smart home devices in the Wellness Hub UI.


  • Select the sensor that you want to pair and configure.
  • Select the location where the sensor will be placed.

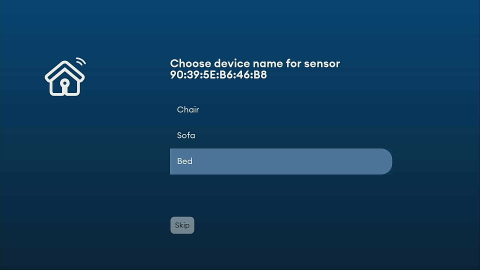

  • Select the device name for the sensor.

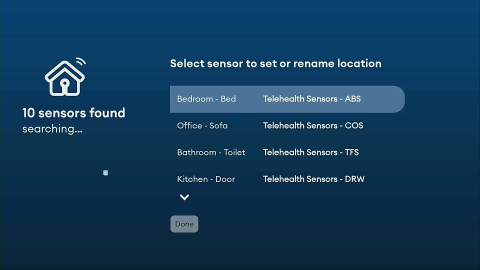

  • The sensor location and device name will be displayed. The sensor has been paired to the Wellness Hub.


  • You can add another smart home sensor now or click on Done to go back to the Settings screen.

Return to Pairing Smart Some Sensors article.

Back to top
